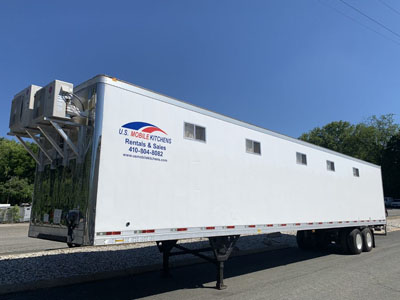

53' Mobile Sleeping

Unit #: 53-010

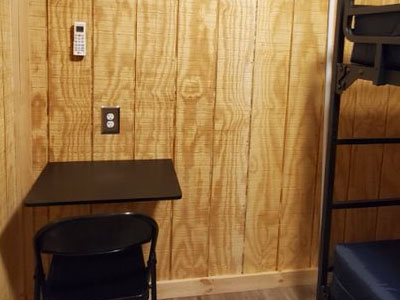

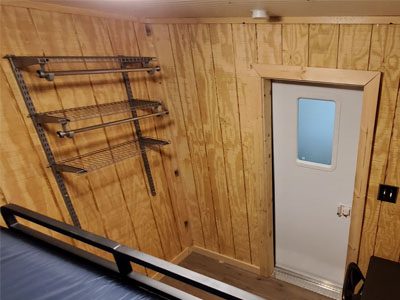

This 53-foot mobile unit sleeps between five and fifteen adults. Five separate rooms can be outfitted with single beds or double or triple bunk beds. Each room also includes a bench with fold down desktop, closet, and shelving. The front of the unit includes two separate showers areas.

Multiple mobile sleeping quarters can be joined to meet virtually any configuration requirement.

Features

  • Superior sound attenuation
  • Remain comfortable in extreme hot and cold climate conditions
  • Ample electrical service and outlets to power appliances such as refrigerators, computers, battery chargers, as well as other personal or mission essential electronics

Layout

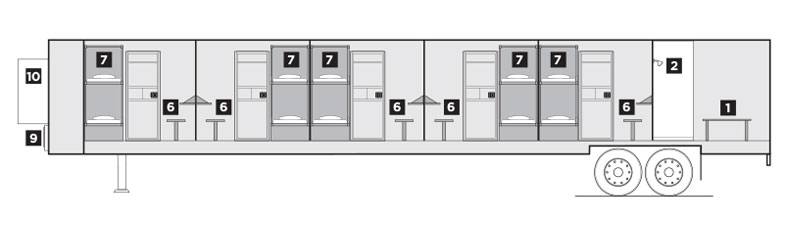

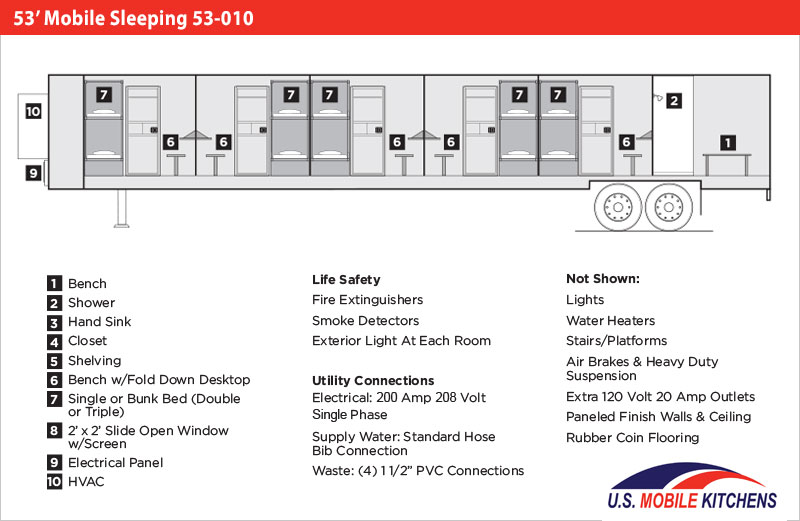

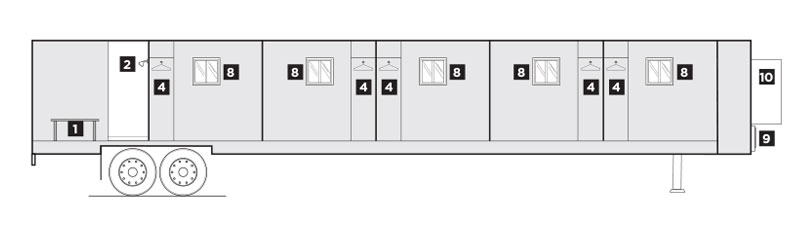

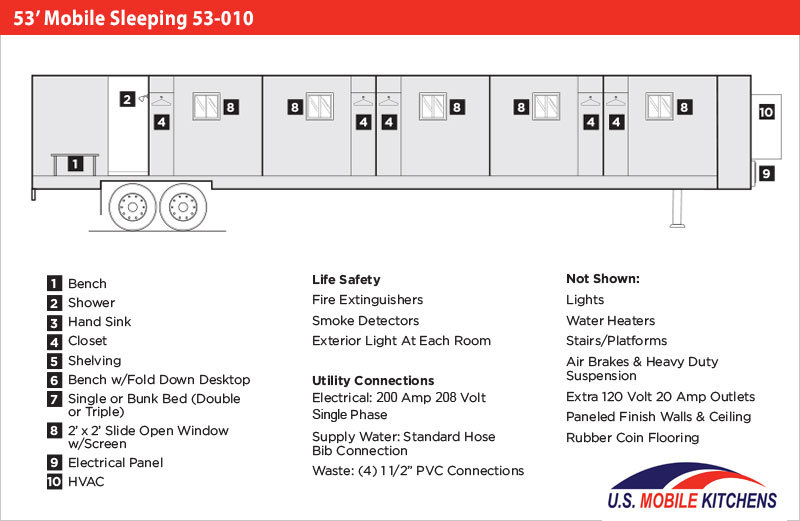

Interior Layout
Interior Layout

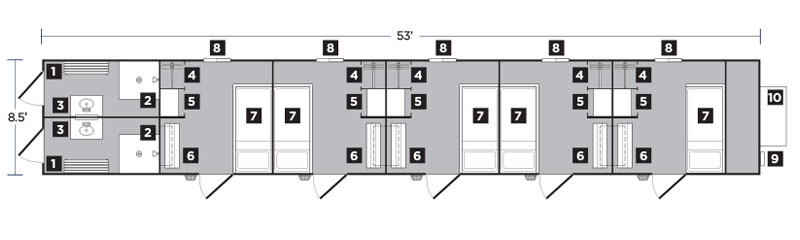

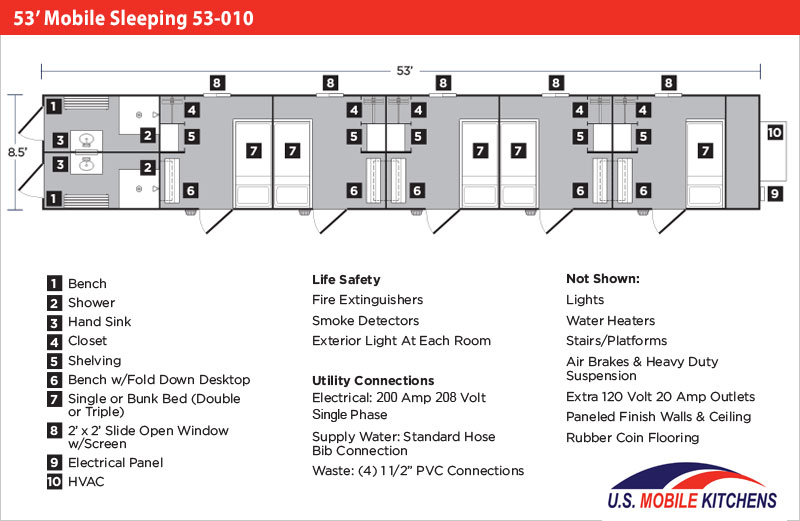

Floor Plan

Legend

  1. Bench
  2. Shower
  3. Hand Sink
  4. Closet

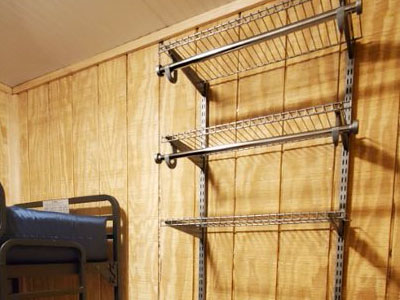

  5. Shelving
  6. Bench w/Fold Down Desktop

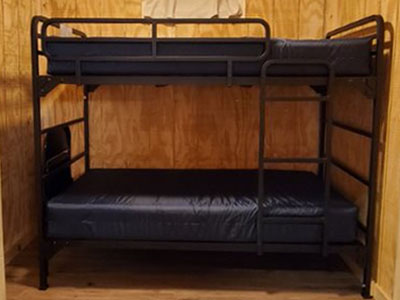

  7. Single or Bunk Bed (Double or Triple)
  1. 2'x2' Slide Open Window w/Screen
  2. Electrical Panel
  3. HVAC
Life Safety
  • Fire Extinguishers
  • Smoke Detectors
  • Exterior Light at Each Room
Not Shown
  • Lights
  • Water Heaters
  • Stairs/Platforms
  • Air Brakes & Heavy Duty Suspension
  • Extra 120 Volt 20 Amp Outlets
  • Panel Finish Walls & Ceiling
  • Rubber Coin Flooring


Utility Connections

  • Electrical: 200 Amp 208 Volt One Phase
  • Supply Water: Standard Hose Bib Connection
  • Waste: (4) 1 1/2" PVC Connection

Add-on

  • Diesel generator is available to provided power for an extended period of time in remote locations

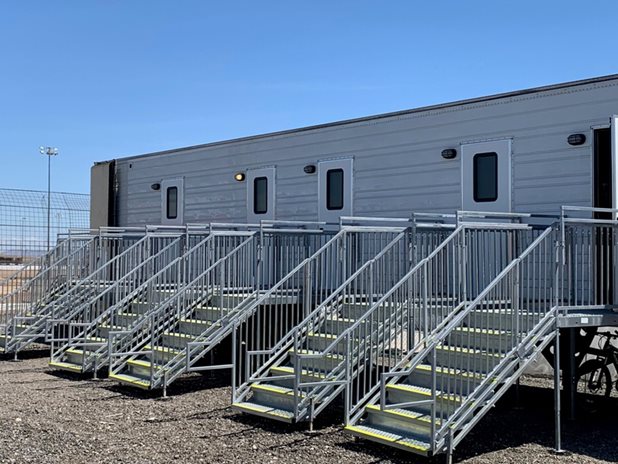

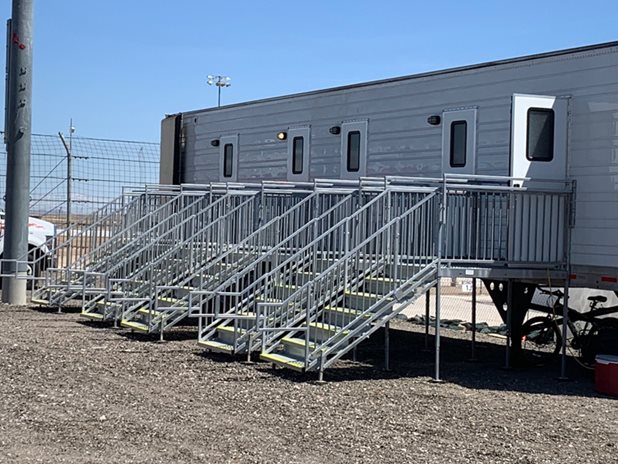

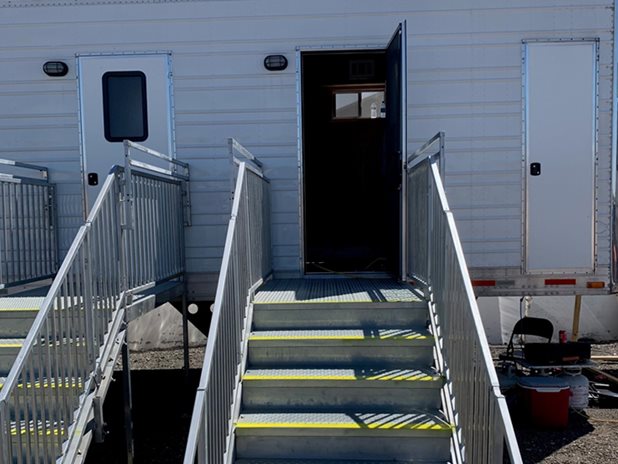

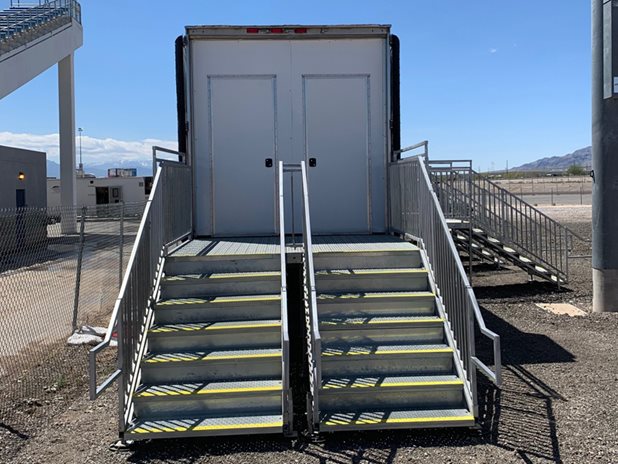

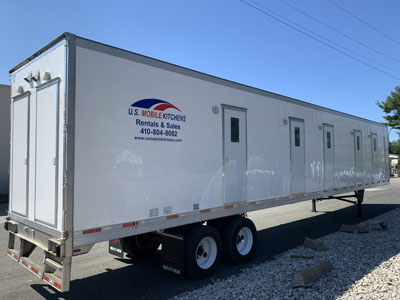

Featured 53' Mobile Sleeping 53-010 Images



NOTE: SOME LAYOUTS VARY FROM TRAILER TO TRAILER. MEASUREMENTS ARE NOMINAL.

This drawing is the property of U.S. Mobile Kitchens. All ideas, designs, arrangements, graphic techniques and plans indicated by this drawing are owned by and the property of U.S. Mobile Kitchens, and were developed for our sole use or in connection with this specific project. None of the ideas, designs or plans shall be used by or disclosed to any person, firm or corporation for any purpose whatsoever without U.S. Mobile Kitchens written permission.
